$300.000 NPK Granulation Project Cost in Bolivia

He 16 of may, the client of LOGÍSTICA MINERA MAIDADE MOREIRA, Bolivia, consulted on the start of an NPK granulation project in Bolivia. As a company dedicated to mining, marketing and export, They have materials such as phosphate rock (P₂O₅) and barium sulfate (BaSO₄). “The plan is to integrate into the business of NPK fertilizer manufacturing; Can you offer us solutions with a budget of 300000USD? We also require technological parameters, energy consumption, layout plans and a quote. Besides, We can collect materials such as urea and KCl.”The specific points of our communication for this case are detailed below..

Case Summary

Ability: 10 t/h
Materials: phosphate rock (P₂O₃), barium sulfate (BaSO₃), urea, KCl
Requirements: Fabricación de pellets de NPK de 3-4 mm
Cost: EXW $290,561
Solution: Línea de granulación con tambor rotatorio

Notes: The above information is for reference only. Contact us for customized fertilizer solutions!! Get a free quote

That teams are needed to start an NPK granulation project in Bolivia?

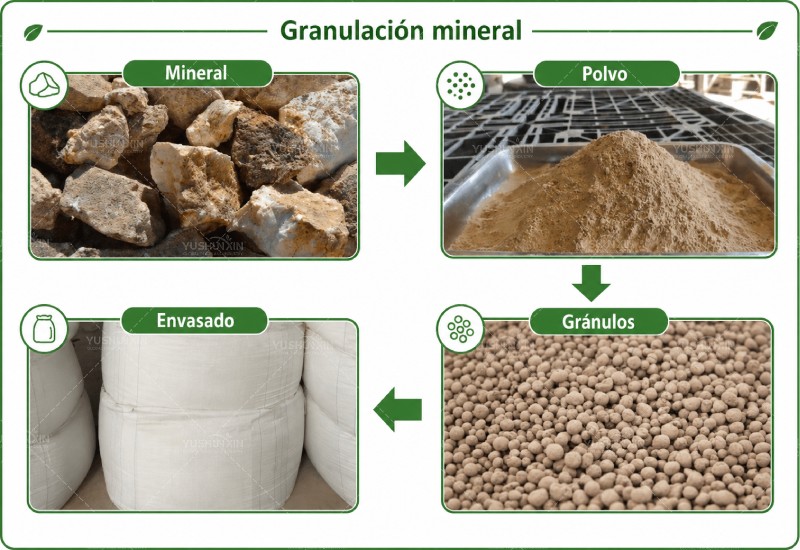

The Bolivian non-metallic mining operator, that seeks to valorize tailings and venture into the production of NPK fertilizers, need a complete granule manufacturing line, from mineral waste to final packaging. Generally, configuration includes:

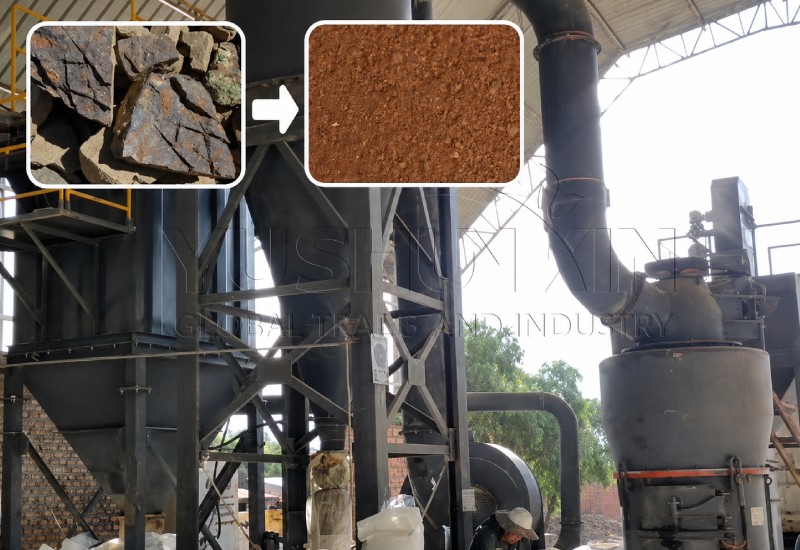

Mineral preparation

a primary crushing system (feeder and crusher), followed by a Raymond mill that micronizes the tailings from phosphate rock (P₂O₅) and BaSO₄, obtaining a stable and reactive powder suitable for mixing.

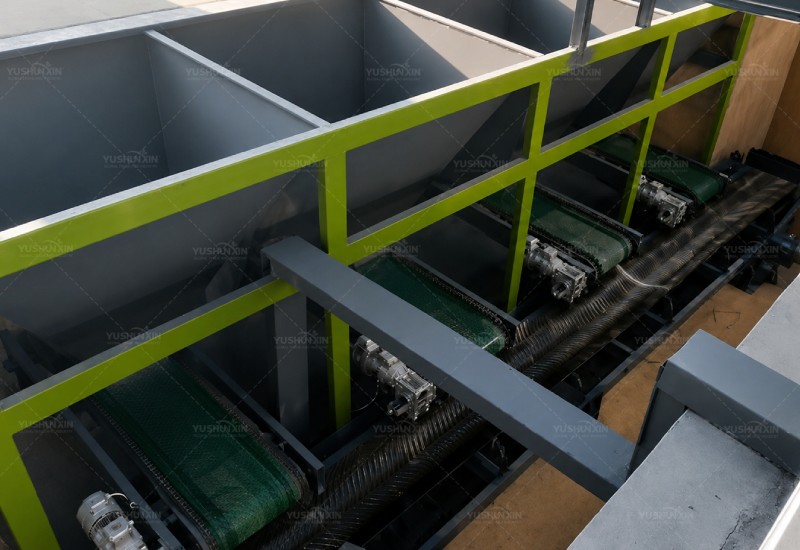

Precise dosage

a dynamic dosing machine that provides exact proportions of urea, KCl, phosphate rock powder and BaSO₄ (used as a filler or conditioner) according to the target NPK grade.
Homogeneous mixing

a fertilizer mixer that ensures uniform nutrient distribution and moisture/additive adjustment before granulation.
Granulation

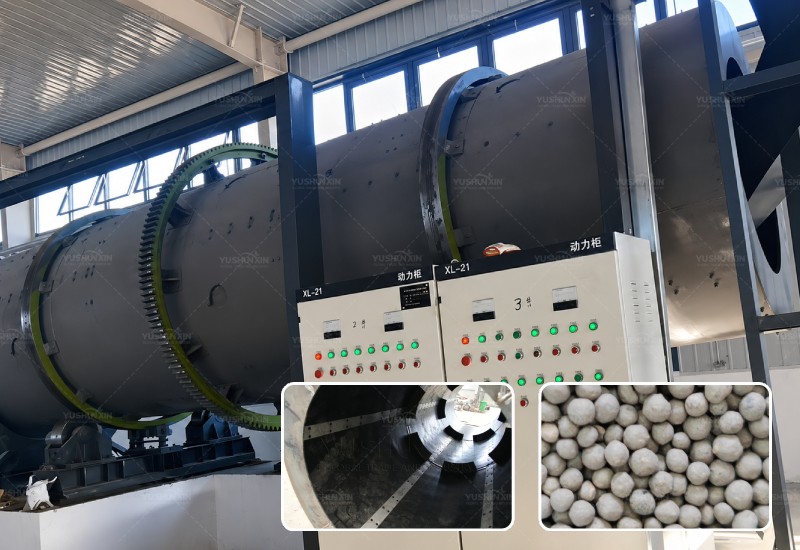

a compound fertilizer granulator that forms 3–4mm NPK granules. For this process, rotary drum granulator, Disc granulator and roller press are ideal options.

$300.000 NPK Granulation Project Cost in Bolivia - Figure 1

$300.000 NPK Granulation Project Cost in Bolivia - Figure 2

$300.000 NPK Granulation Project Cost in Bolivia - Figure 3

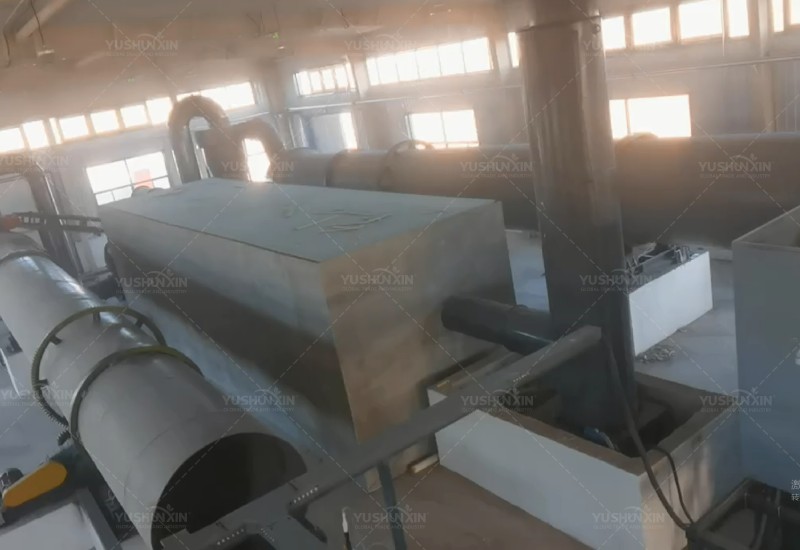

Drying and cooling

a drum dryer and a chiller, powered by a gas burner and hot air oven, to achieve adequate storage humidity and improve the hardness of granules.

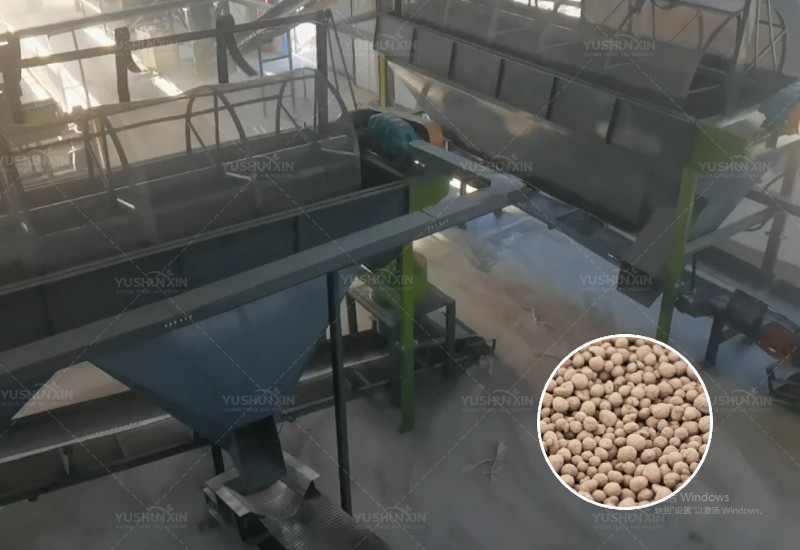

Uniform sizing

a rotary sieve that delivers 3–4mm product; oversized material is shredded and recycled, while the fines return to the granulator.

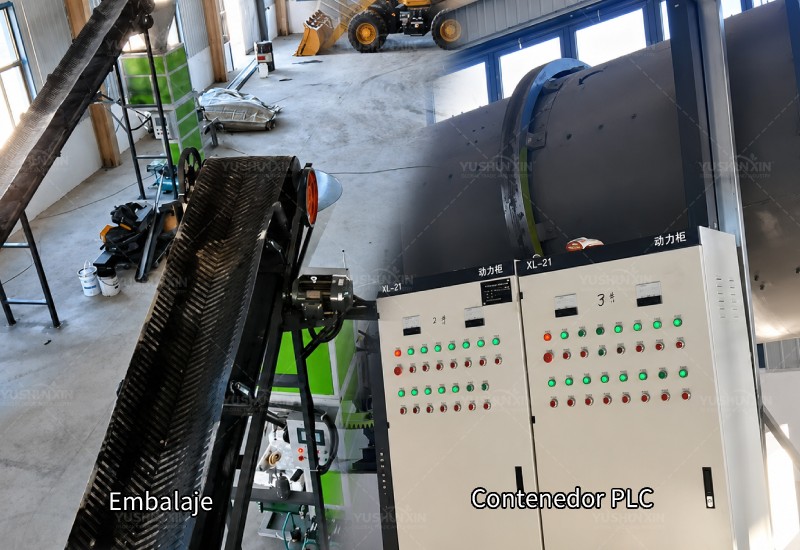

Packing

an automatic fertilizer packaging system (25/50kg bags or big bags) prepared for national distribution and export.
Auxiliary equipment

dust collectors at each key stage (rock grinding, drying and cooling), conveyor belts in all sections and a PLC container for automation, formula control and production data recording.

Can you offer detailed configuration for an NPK granulation project in Bolivia with a cost of 300,000USD?

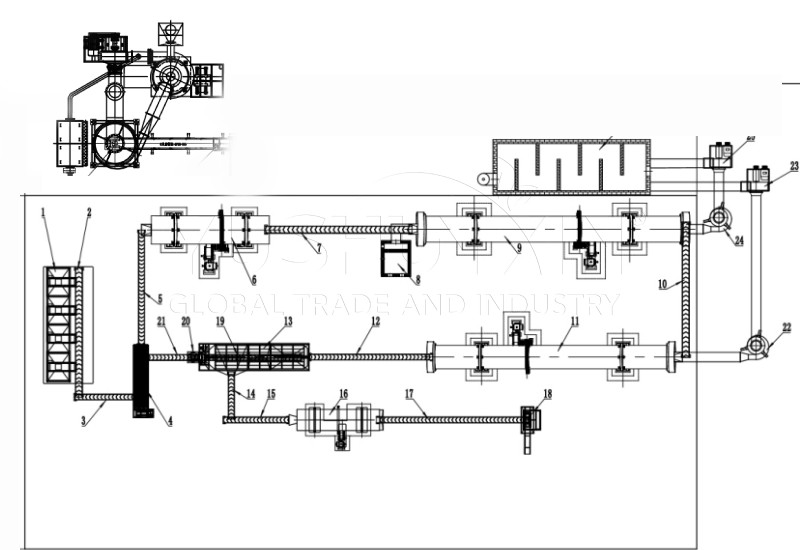

The company LOGÍSTICA MINERA MAIDADE MOREIRA from Bolivia informed us that its budget for the NPK granule production project amounts to 300,000USD, and requested the technical configuration along with the quote. For this, it is advisable to install a 10TPH NPK granulation system with rotary drum granulator.
On the one hand, This line completely meets the need of granulating NPK powder at a rate of 10tons per hour with a single set of equipment.; for another, NPK granulator was specially designed with rubber coating, Self-cleaning holes and erosion-resistant structure. Generally, The following equipment is required to be purchased: Molino Raymond SXRM10 T, Dynamic dosing machine with 4 hoppers, SXSJ‑1050 Double Shaft Horizontal Mixer, SXZGZ‑2080 Rotary Drum Granulator, SXGS‑1870 Rotary Sieve, SXHG‑2020 Drum Dryer, SXHG‑1818 Rotary Chiller, Double packaging scale. The EXW price is $290,561.

Equipment	Model	Ability	Power (kW)	Cost (USD)
Molino Raymond	SXRM‑10 T	10 TPH	180–200	82.400
Dynamic dosing machine	SXCWL‑2060	4 hoppers	15	8.760
Double shaft mixer	SXSJ‑1050	8–10 TPH	35	59.600
drum granulator	SXZGZ‑2080	8–15 TPH	18,5	59.600
Rotary sieve	SXGS‑1870	10–15 TPH	7,5	4.260
drum dryer	SXHG‑2020	8–15TPH	37	43.700
Rotary cooler	SXHG‑1818	7–12 TPH	22	32.620
Double packaging scale	SXBZ‑50	20–50kg/bag	25	10.900
hot air burner	–	–	–	6.132
natural gas burner	–	–	5,5	3.788
Dust collectors	–	–	37	10.535
Conveyor belt	B-500	6–10 m	40	16.670
Electronic control cabinet	–	–	–	4.546

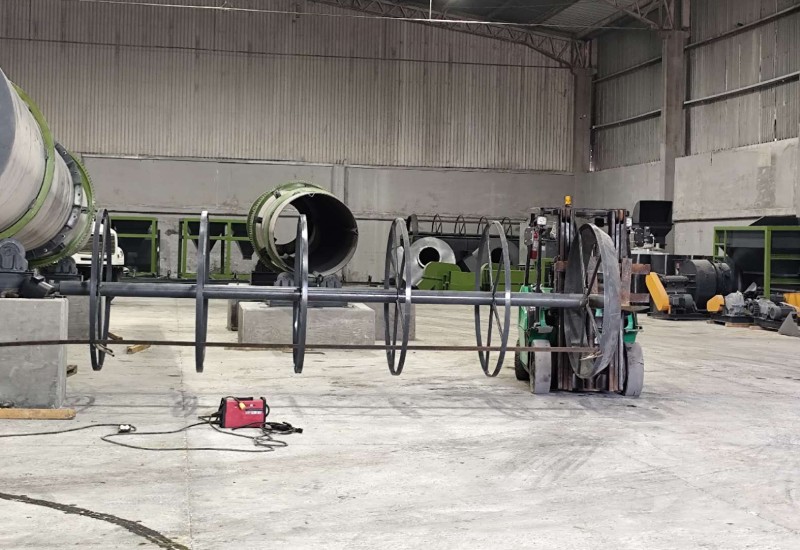

Can you offer NPK granule production line installation service in Bolivia?

Of course. As a comprehensive supplier of turnkey fertilizer manufacturing plans and equipment, YUSHUNXIN provides complete service ranging from NPK granulation plan design and equipment manufacturing., to installation and operational guidance.

If they require it, our engineers can travel to Bolivia to set up the NPK granule production system, although it will be necessary to cover their corresponding fees.

The above points summarize our communication with the client regarding the NPK granulation project in Bolivia with a cost of 300,000USD. Besides, we also offer plans for blended NPK fertilizers, SSP mineral fertilizer production systems y organic fertilizer solutions, inter alia. We invite you to request your own business plan for fertilizers and take advantage of the opportunities in the Bolivian market with the technical support of YUSHUNXIN.
